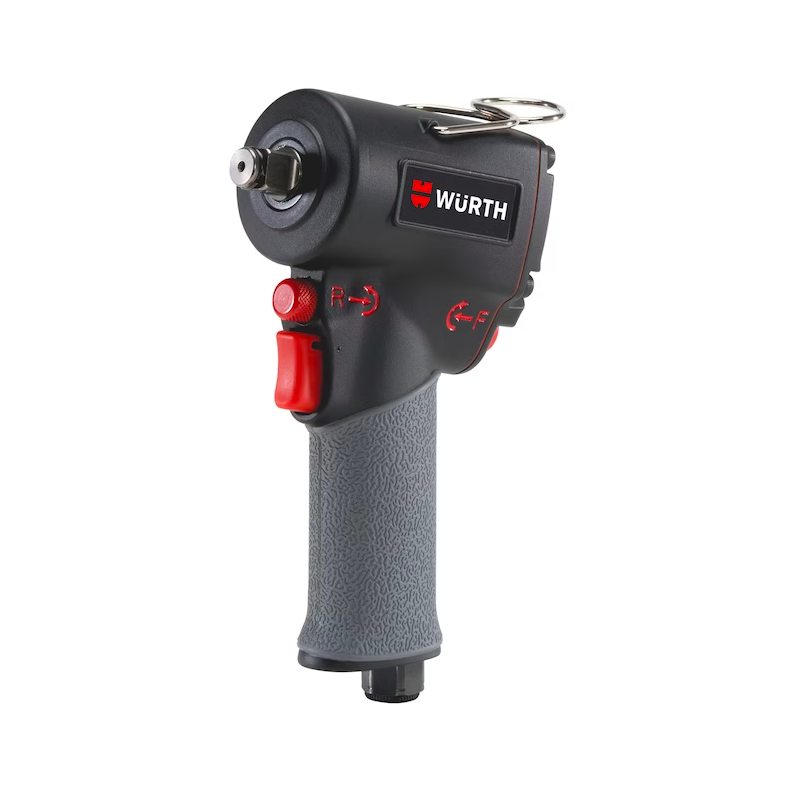

Very powerful yet compact pneumatic impact screwdriver with outstanding power-to-weight ratio. Maximum recommended screw size: M16.
Long service life and optimal balance distribution
-Rugged, well-balanced unit in aluminium housing.
Very handy and user-friendly
- Rubberised handle prevents unpleasant cooling
- User-friendly clockwise/anti-clockwise changeover and adjustable button
Compact and extremely powerful jumbo hammer mechanism
- High power development with small size and low weight, up to 1,100 Nm breakaway torque.
Optimum and user-friendly adjustment to any application, at any time
-Three-stage power setting for clockwise rotation, with sensitive trigger
Notice
- Impact screwdrivers are not torque screwdrivers. Connections requiring a specific torque must be checked by means of a torque measuring device after tightening with the impact screwdriver.
- When the impact screwdriver is used regularly, a little oil should be added daily through the compressed air supply.
- Plug-in nipple not included in the scope of delivery
Application area
Ideal where space is limited, e.g. gearbox, engine compartment, brakes
|
Type description |
DSS 1/2 inch Compact |
|
Tool holding device |
1/2-inch external square |
|
Max. working torque |
678 Nm |
|
Max. releasing torque |
1100 Nm |
|
Sound-pressure level |
102 dB |
|
Vibration |
7.5 m/s² |
|
Operating pressure |
6.3 bar |
|
Weight of machine |
1.34 kg |
|
Min. hose inner diameter |
9 mm |
|
Air consumption |
122 l/min |
|
Connection thread |
1/4 inch |
|
Length x width x height |
109 x 57 x 188 mm |
Very powerful yet compact pneumatic impact screwdriver with outstanding power-to-weight ratio. Maximum recommended screw size: M16.
Long service life and optimal balance distribution
-Rugged, well-balanced unit in aluminium housing.
Very handy and user-friendly
- Rubberised handle prevents unpleasant cooling
- User-friendly clockwise/anti-clockwise changeover and adjustable button
Compact and extremely powerful jumbo hammer mechanism
- High power development with small size and low weight, up to 1,100 Nm breakaway torque.
Optimum and user-friendly adjustment to any application, at any time
-Three-stage power setting for clockwise rotation, with sensitive trigger
Notice
- Impact screwdrivers are not torque screwdrivers. Connections requiring a specific torque must be checked by means of a torque measuring device after tightening with the impact screwdriver.
- When the impact screwdriver is used regularly, a little oil should be added daily through the compressed air supply.
- Plug-in nipple not included in the scope of delivery
Application area
Ideal where space is limited, e.g. gearbox, engine compartment, brakes
|
Type description |
DSS 1/2 inch Compact |
|
Tool holding device |
1/2-inch external square |
|
Max. working torque |
678 Nm |
|
Max. releasing torque |
1100 Nm |
|
Sound-pressure level |
102 dB |
|
Vibration |
7.5 m/s² |
|
Operating pressure |
6.3 bar |
|
Weight of machine |
1.34 kg |
|
Min. hose inner diameter |
9 mm |
|
Air consumption |
122 l/min |
|
Connection thread |
1/4 inch |
|
Length x width x height |
109 x 57 x 188 mm |
